Tepas Facilities Tepaş A.S. Company has produced electrical home and garden appliances since 1978 and after 1983, the company has involved in the production of various types of universal and asynchronous motors. Tepaş A.S.. Company combines a long term experience with the benefits of advanced technology by using full automatic machines in the manufacturing processes.

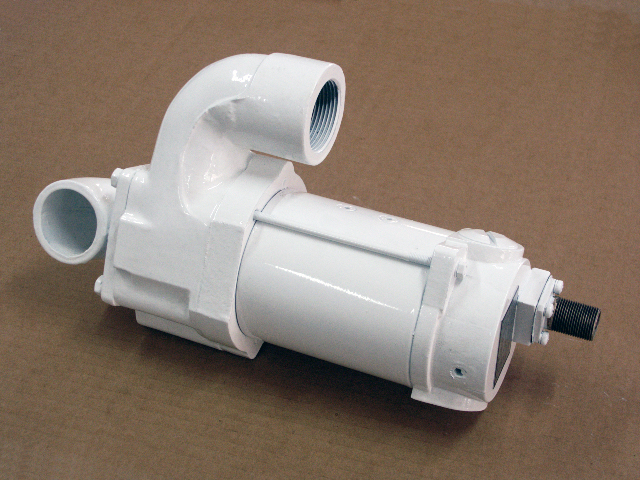

NSN : 4320-00-679-9643 Pumps are manufactured as per MIL-P-62156B .Operates fully submerged with 28 Vdc and can run dry for a limited duration.The motor housing is made from steel and yokes are made from chromate plated aluminium alloy. Motor shaft and bolts are made from stainless steel.Waterproofness is provided by a gafite-ceramic packing. The Pump is used on: M113 APC, 6x6 Armoured Vehicle, Anfibic Cobra Vehicles.

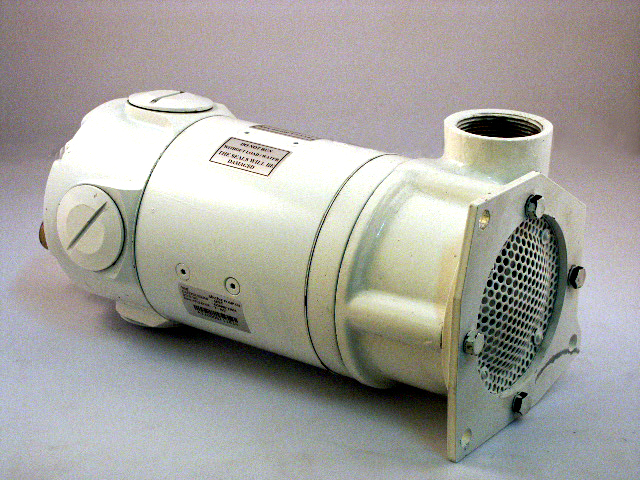

NSN : 4320-00-871-2834 Pumps are manufactured as per military standards .Operates fully submerged with 28 Vdc and can run dry for a limited duration.The motor housing is made from steel and yokes are made from chromate plated aluminium alloy. Motor shaft and bolts are made fromf stainless steel.Waterproofness is provided by a gafite-ceramic packing. The pump is used on: M48 and M60 Tanks APC, M52 (T155) Fırtına

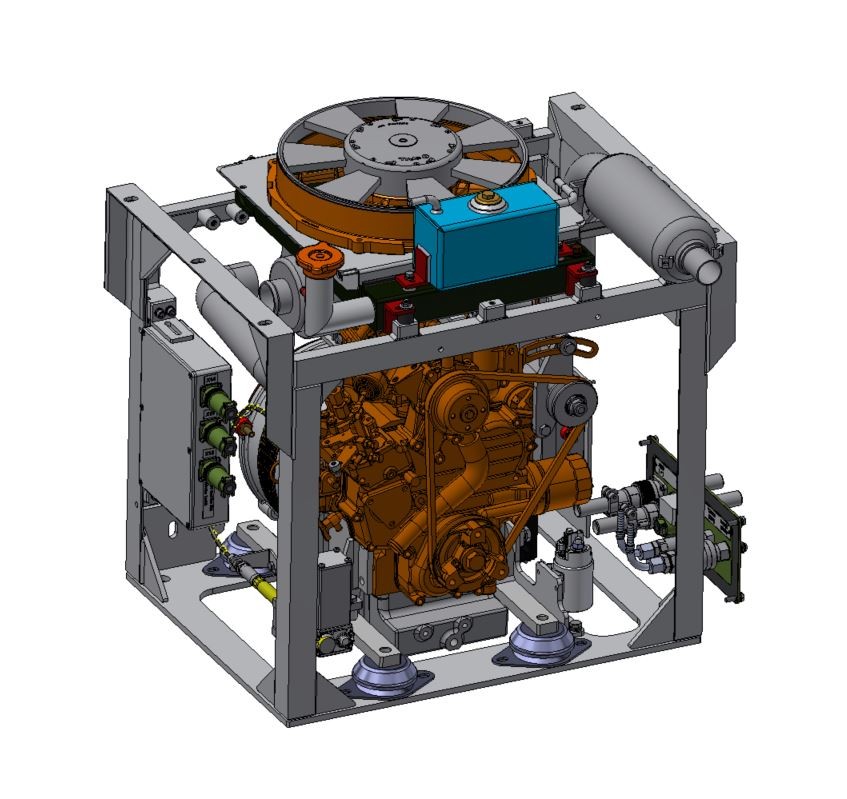

Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a single cylinder diesel motor,alternator,rectifier unit,cooling fan and control unit. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Brushless 6 phase externally energized and self rectifying.• Efficiency: 60-80% over normal operating range. • Over voltage and temperature protection.• Bi-directional rotation. • Bi-directional fan included with alternator.• Sealed bearings. • Radio noise suppression per (MIL-STD-461F)• Shock and Vibration test report (MIL-STD-810G)• (MIL-STD 1275) compatible• Humidity test (MIL- STD- 810G) • Corrosion and salt water resistant. (MIL-STD- 810G) / EN 60529 - IP55• Recommended operating speed: 8,000 rpm.max.• Overspeed: 10.000 rpm.• Unit weight: ~ 71.5 LBS./(32,6 Kg)
Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a single cylinder diesel motor,alternator,rectifier unit,cooling fan and control unit. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a single cylinder diesel motor,alternator,rectifier unit,cooling fan and control unit. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.

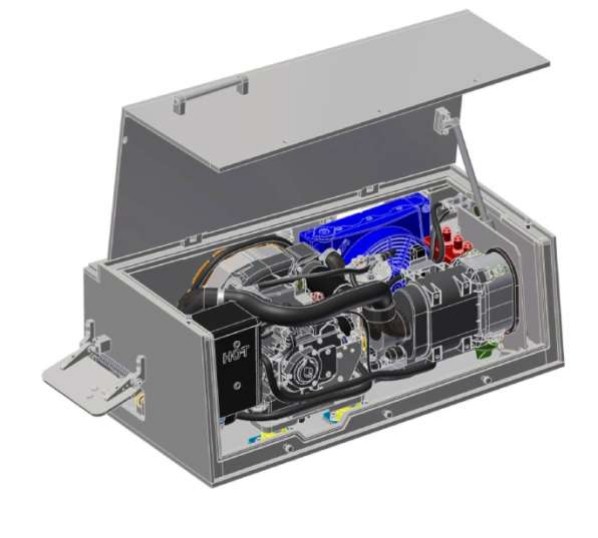

Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a three cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a three cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a three cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Auxiliary Power Units are produced for use on military and commercial vehicles.They consist of a three cylinder diesel motor driven alternator,electronic control and rectifier unit,air filtration system,fuel system,heating and cooling system. When the vehicle is stationary and necessary power is drawn from the batteries, APU automatically charges the batteries allowing the main engine to be turned off.This reduces the fuel consumption and wear of idling the vehicle’s main engine and also reduces detectability (low thermal and infrared signitures) during combat operations,thus providing the ability to operate in silent watch operational mode.
Mobile Applications
